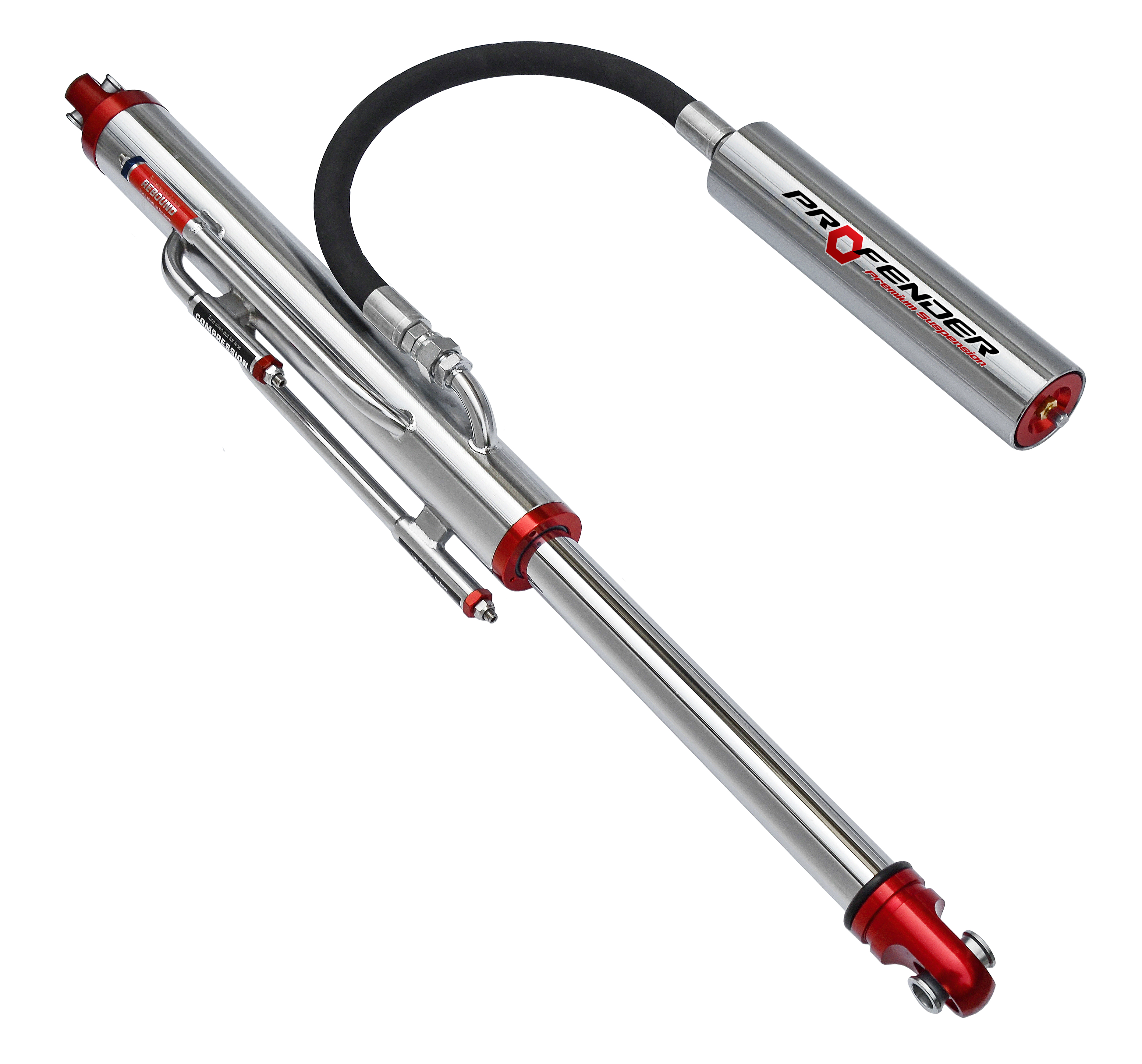

Profender Airshocks 2.5“ are the ultimative solution for trophy- and trail vehicles. The high quality Airshock combines shock absorber and spring in one element, which makes it extremely weight- and space-saving. The ride height is adjustable by changing the nitrogen pressure. On this way the rebound and compression travel can be set individually. As a result of the progressive daming force the Airshock can serve as a bump stop as well.
The shock comes with two external bypasses for compression adjustment and one bypass for rebound adjustment.
Further adjustments in compression and rebound can be made by changing the internal valving. The shock is fully rebuildable.
We recommend the Profender nitrogen filler for the adjustment of pressure in the shock.
| DESCRIPTION | TRAVEL | OIL VOLUME (cc) | EXT. LENGTH (in) | COL. LENGTH (in) | SHAFT (in) |
| Profender 2.5" Air Shock | 12.0" | 515 cc | 34.65" | 22.65" | 1.625" |
| Profender 2.5" Air Shock | 14.0" | 585 cc | 38.65" | 24.65" | 1.625" |
| Profender 2.5" Air Shock | 16.0" | 655 cc | 42.65" | 26.65" | 1.625" |
| Profender 2.5" Air Shock | 18.0" | 690 cc | 46.65" | 28.65" | 1.625" |
| Code | Description | O/L | C/L | Travel | Bore | Rod | Shell | Upper/Lower Mount |
| AR-12-34-16 | Air Shox | 34.65'' | 22.65'' | 12'' | 60 mm. | 40 mm. | 65 mm. | Plain Bearing Dai 16 mm. |
| AR-14-38-16 | Air Shox | 38.65'' | 24.65'' | 14'' | 60 mm. | 40 mm. | 65 mm. | Plain Bearing Dai 16 mm. |
| AR-16-42-16 | Air Shox | 42.65'' | 26.65'' | 16'' | 60 mm. | 40 mm. | 65 mm. | Plain Bearing Dai 16 mm. |
| AR-18-46-16 | Air Shox | 46.65'' | 28.65'' | 18'' | 60 mm. | 40 mm. | 65 mm. | Plain Bearing Dai 16 mm. |
