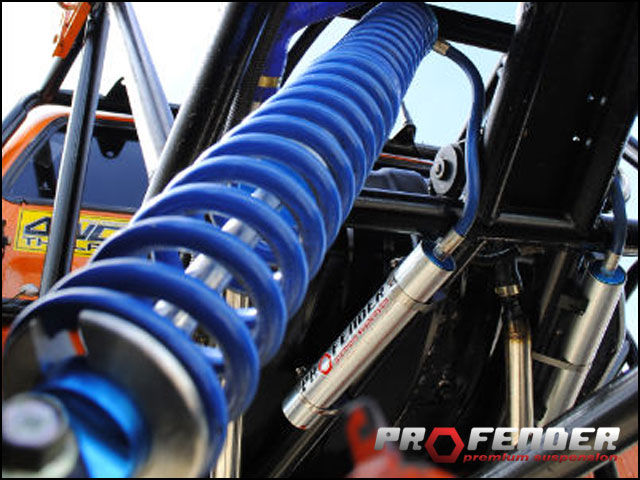

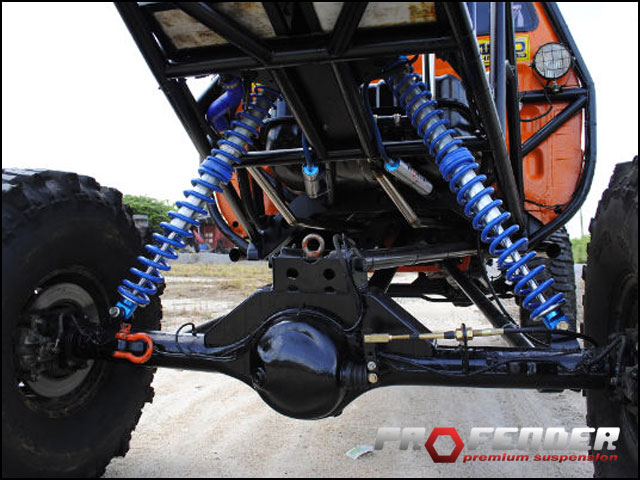

The Profender CoilOver 2.0“ Shock has been specifically developed for off road motorsports and is characterised by its compact construction. It combines two springs with a high-end shock absorber. An external reservoir keeps the oil temperatur cool and guarantees the damping performance at continous stress.
The spring rates for the upper and lower coil spring can be chosen individually, to suit exactly to your vehicle. We can help you with the choice of the correct spring rates. Please contact us!

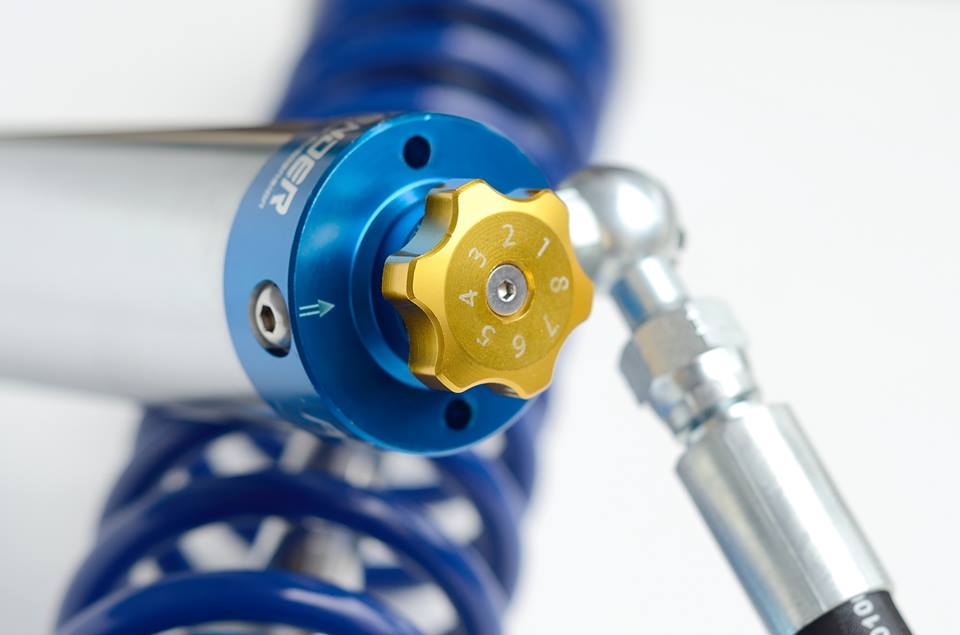

The adjustment of the compression stage via click knob is a brand new innovation in this segment. The damping force can be adjusted 8-fold within seconds to suit the respective terrain or vehicle loading.
Furthermore, the nitrogen pressure can be adjusted via valve on the back of the reservoir (100 – 250 psi). However the shocks already come with a good pre-set nitrogen pressure. Further adjustments in compression and rebound can also be made by changing the internal valving. The shock is fully rebuildable.
Technical data:
- O/L: 32 "
- C/L: 22 "
- Travel: 11 "
- Bore: 46 mm
- Rod: 20 mm
- Shell: 52 mm
- Upper / Lower Mount: Plain Bearing Dia 16 mm
We recommend the Profender nitrogen filler for the adjustment of pressure in the shock.
COIL OVER SHOCK 34'' TRAVEL 12'' | TYPE | TOP SPRING 12'' LENGTH | N/mm | Lbs/in | BOTTOM SPRING 14'' LENGTH | N/mm | Lbs/in |
1 | SOC-12-64-80 | 14.0 | 80 | SOC-14-64-100 | 18.0 | 100 | |
2 | SOC-12-64-100 | 18.0 | 100 | SOC-14-64-150 | 27.0 | 150 | |
3 | SOC-12-64-150 | 27.0 | 150 | SOC-14-64-200 | 35.0 | 200 | |
4 | SOC-12-64-200 | 35.0 | 200 | SOC-14-64-250 | 44.0 | 250 | |
5 | SOC-12-64-250 | 44.0 | 250 | SOC-14-64-300 | 53.0 | 300 | |
6 | SOC-12-64-300 | 53.0 | 300 | SOC-14-64-350 | 61.4 | 350 | |
7 | SOC-12-64-350 | 61.4 | 350 | SOC-14-64-400 | 70.15 | 400 | |
8 | SOC-14-64-600 | 105.0 | 600 | ||||
9 | |||||||
10 | |||||||
11 | |||||||
12 | |||||||
13 | |||||||
14 |
